Business-grade Wi-Fi 7 Ceiling-mount Wireless AP for Future-ready Networks
High‑speed, stable, and secure, PLANET WDAP‑C5100BE is the ideal solution for upgrading business networks to meet the demands of high‑density environments and future applications. Leveraging the latest Wi‑Fi 7 (802.11be) technology and supporting both the 2.4 GHz and 5 GHz frequency bands, this ceiling‑mount access point delivers exceptional wireless connectivity for airports, large offices, conference centers, and smart cities. With advanced innovations, robust stability, and high efficiency for business‑grade applications, the WDAP‑C5100BE is designed to optimize network performance and commercial reliability.
Ultra-Wide Channels for Stable and Efficient Enterprise Wi-Fi 7 Connectivity
The WDAP-C5100BE supports up to 160 MHz channel bandwidth, a key feature of Wi-Fi 7 that doubles the available channel width compared to Wi-Fi 6E. Its peak transmission rate of 5100 Mbps is designed for commercial environments, delivering stable performance, higher efficiency, and reliable operation.

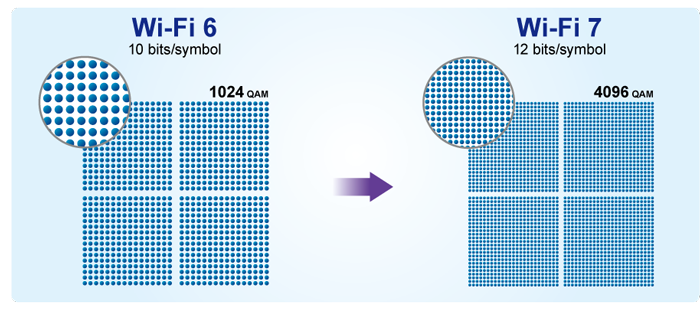

Boost Network Throughput with 4096-QAM
With 4096-QAM encoding, the WDAP-C5100BE transmits more data per signal, increasing throughput and making it ideal for high-bandwidth applications such as 4K/8K video streaming, AR/VR experiences, and real time cloud services while maintaining a stable and efficient network connection.
Seamless Connectivity and Peak Network Performance

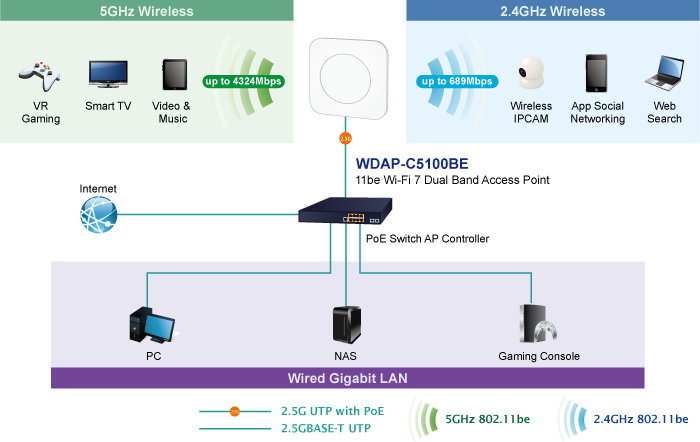

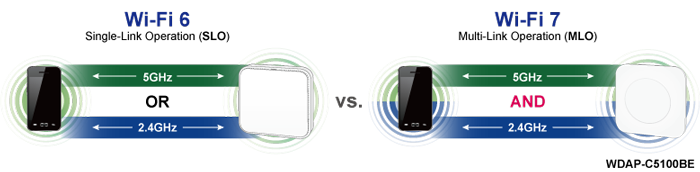

Designed for robust dual‑band operation, the WDAP‑C5100BE ensures seamless connectivity across both 2.4 GHz and 5 GHz frequencies. This design guarantees consistent data transfer and stable connections even in interference‑prone, high‑density scenarios, delivering the reliability demanded by modern commercial applications.
Optimize Spectrum Utilization

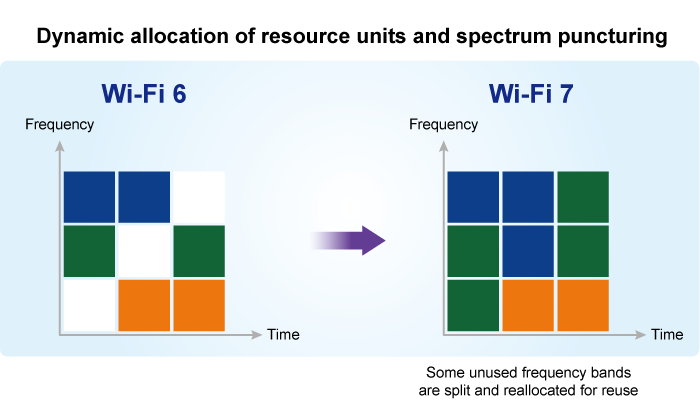

Employing advanced techniques such as dynamic allocation of resource units and spectrum puncturing, the WDAP‑C5100BE minimizes spectrum waste and maximizes efficiency in densely‑populated wireless environments, further enhancing overall network performance and business productivity.

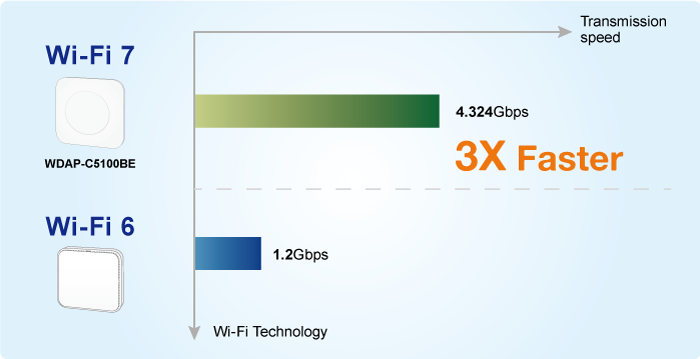

Business‑oriented Performance
The WDAP-C5100BE is optimized for enterprise environments, focusing on network stability, efficiency, and high performance. It delivers speeds of up to 4.324 Gbps on the 5 GHz band, offering a threefold performance boost compared to Wi-Fi 6E while ensuring stable and continuous connectivity.

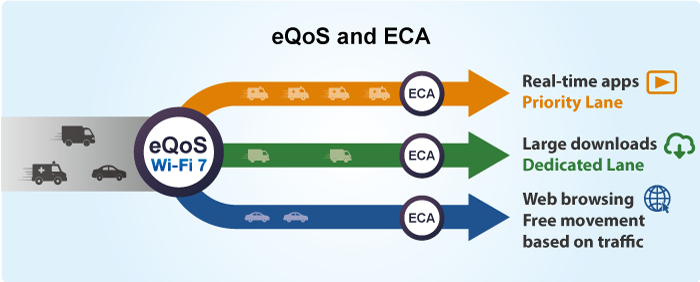

Ultra-low Latency and Jitter
Equipped with advanced Quality of Service (eQoS) and enhanced channel access technologies, the WDAP-C5100BE dynamically prioritizes data packets to minimize latency and ensure consistent performance for real-time applications such as AR/VR, video conferencing, and online gaming.

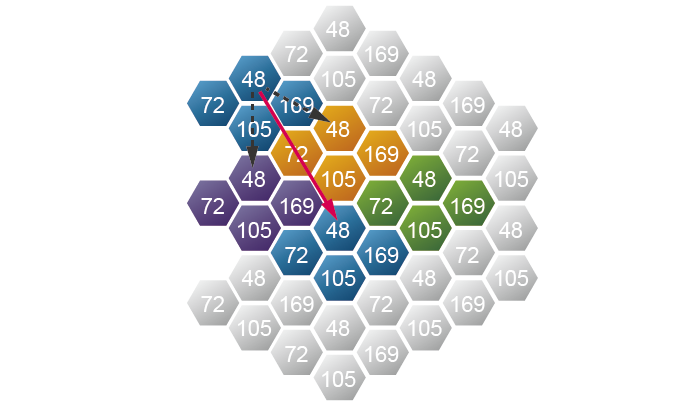

Precision Interference Control for Seamless Performance
Incorporating BSS Coloring technology to effectively differentiate overlapping networks, the WDAP‑C5100BE minimizes interference and maintains stable connections. In addition, beamforming technology directs Wi‑Fi signals toward connected devices, enhancing coverage and signal stability throughout the deployment area.
Advanced Security
The WDAP‑C5100BE supports advanced encryption protocols including WPA3‑PSK, WPA2‑PSK, and WPA/WPA2 Enterprise to ensure robust data protection, prevent unauthorized access, and safeguard the network. Administrators can further manage access through predefined ACLs for enhanced security, making it an ideal choice for sensitive business applications.

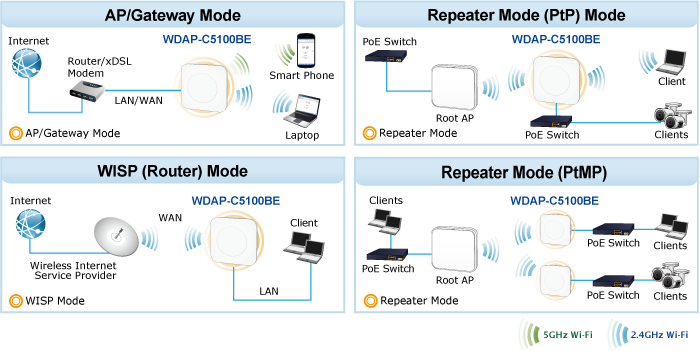

Flexible Deployment Modes and Easy Management
With versatile operation modes (AP, Gateway, and Repeater), the WDAP‑C5100BE adapts seamlessly to various deployment scenarios, whether establishing a new network or upgrading an existing one. Its PoE+ support (802.3at) and intuitive remote management via PLANET CloudViewerPro app and NMS systems enable effortless installation, monitoring, and maintenance.
Choose WDAP‑C5100BE and Embrace the Future of Business Networking
More than just an access point, the WDAP‑C5100BE is a smart, future‑proof solution engineered to meet the high‑performance demands of modern businesses. Its benefits of Wi‑Fi 7 technology facilitate the optimization of stability, efficiency, and commercial excellence across all your network applications.
Infinite Possibilities and Seamless Connectivity for a Comprehensive Smart Environment
The WDAP‑C5100BE is not only the ideal choice for upgrading enterprise networks but also a key driving force behind the smart environment revolution. Whether it’s in the bustling airport hubs, modern large-scale offices, dynamic conference centers, or every corner of smart cities, the WDAP‑C5100BE delivers stable, efficient, and low-latency wireless connectivity, ensuring every user enjoys an exceptional networking experience.
Moreover, it is equally suited for diverse commercial settings such as hotels, restaurants, and educational institutions, enabling customers, travelers, and students alike to experience ultimate network speed and connection stability wherever they are. The WDAP‑C5100BE is ideal for future smart living and high-efficiency work environments.
Industrial Compliant Wireless LAN
- Compliant with the IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) wireless technology
- Equipped with one 10/100/1000/2500Mbps WAN/PoE RJ45 port and one 10/100/1000Mbps LAN RJ45 port, supporting auto-negotiation and auto MDI/MDI-X for seamless connectivity
RF Interface Characteristics
- A state‑of‑the‑art Wi‑Fi 7 architecture with advanced MIMO technology

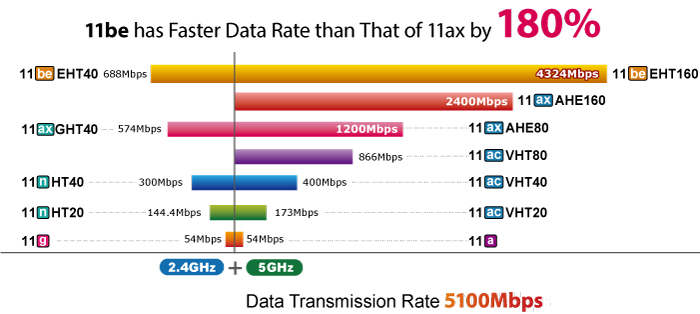

- Up to 5100 Mbps (approximately 689 Mbps at 2.4 GHz and 4324 Mbps at 5 GHz) with 4K‑QAM (4096‑QAM) encoding for boosted throughput
Multiple Operation Modes and Wireless Features
- Flexible operation modes (AP, Gateway, and Repeater) for diverse deployment needs
- Wi‑Fi Multimedia (WMM) for superior streaming quality
- A real-time channel analyzer for channel utilization, and seamless roaming with 802.11k/v/r for uninterrupted connectivity
- Dynamic coverage thresholds for further weak signal interference reduction to maintain stable sessions
Secure Network Connection
- Comprehensive wireless security with WPA3-PSK, WPA2-PSK, WPA/WPA2 Enterprise, and 802.1X RADIUS authentication
- VLAN support with SSID to VLAN mapping, along with IP/Port/MAC filtering, DoS protection, and SPI firewall features for robust network safeguarding
- Customizable configurations such as DMZ, port forwarding, and per IP bandwidth control for consistent performance in high density deployments
Easy Deployment and Management
- PLANET AP Controllers in AP mode.
- Self-healing mechanism through system auto reboot setting
- System status monitoring via remote syslog servers, combined with support for PLANET DDNS/Easy DDNS, Captive Portal, and RADIUS Server/Client in Gateway mode, to streamline management.

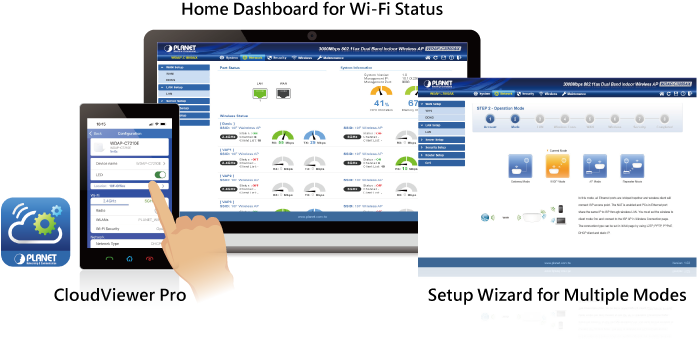

- PLANET Smart Discovery Utility, PLANET NMS system, and CloudViewerPro app for centralized, efficient deployment management.
