SA-204

SKU: SA-204

Fonestar

Amplifier 2 x 150W



Brand: Fonestar

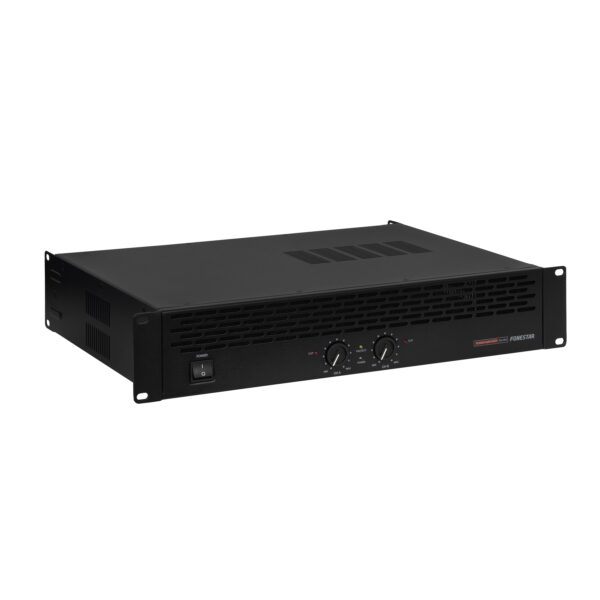

Power stages Stereo SA-204

The SA series amplifiers deliver high power and sound quality with high performance and stability.

Operating and power modes:

Stereo and parallel: up to 150 + 150 W RMS@4 Ω
Bridge: up to 200 W RMS@8 Ω

High reliability with temperature, short circuit and overload protections.

Audio inputs with standard connectors: XLR and RCA with volume control for each channel.
Speaker outputs with screw terminals and banana plugs or speaker connector.

Very user-friendly and minimal set-up time.

Designed for professional use in different mobile events such as discos, concerts, festivals, meetings, etc.,as well as for fixed installations in discotheques, pubs, auditoriums, etc.



Key Features:

  • Great power and sound quality.
  • High performance and stability
  • It has protection circuits
  • Very user-friendly and minimal set-up time



SKU: SA-204 Category: Tags: , , , ,
Brand

Amplifier Features

, , ,





Technical Specifications:

Features: Professional stereo power amplifier.
Power: Stereo and parallel mode:
150 + 150 W RMS@4 Ω
100 + 100 W RMS@8 Ω
Bridge mode: 200 W RMS@8 Ω
Protection: Temperature, short circuit and surge
Forced ventilation

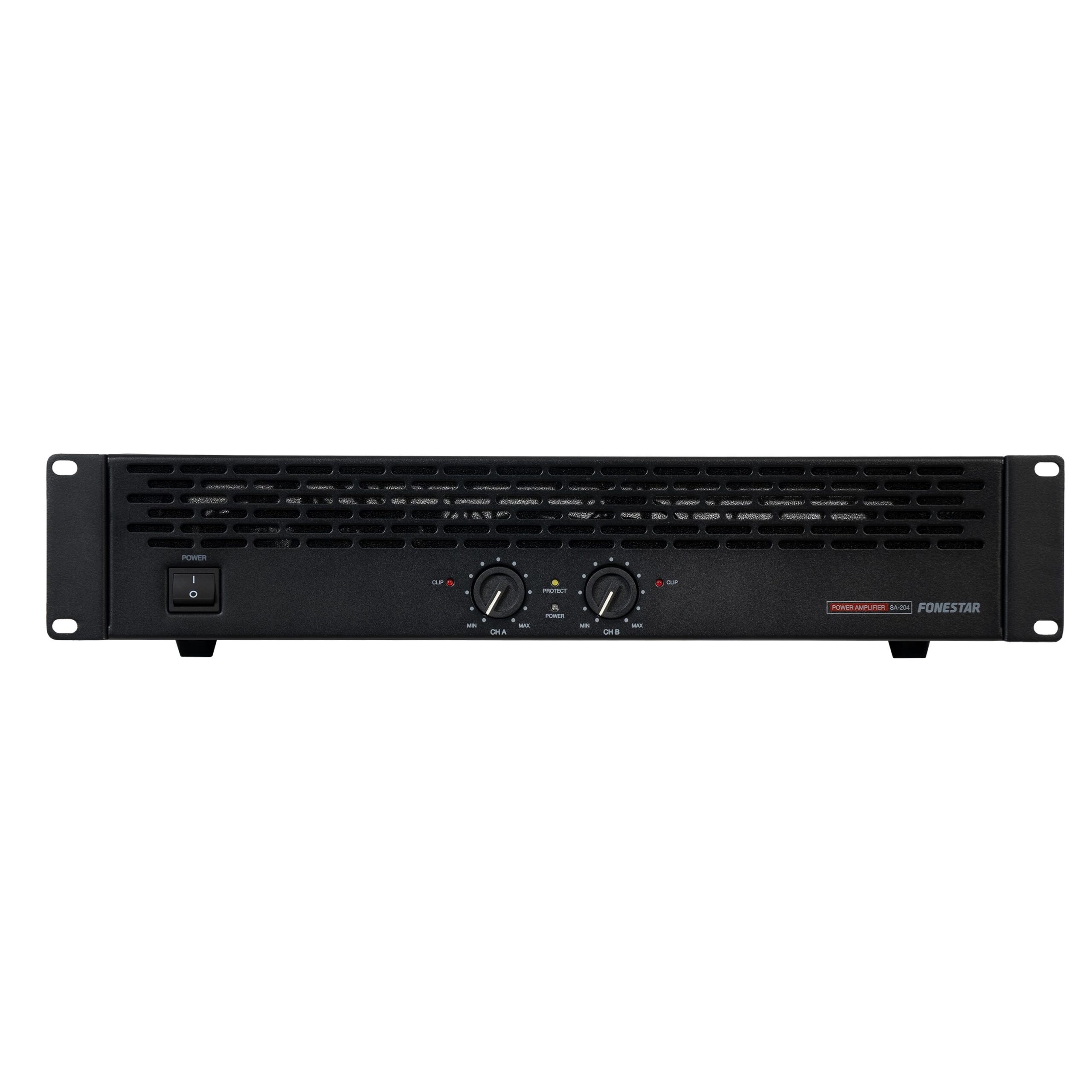

Controls: Volume per channel
Parallel/stereo/bridge operating mode selector
GND lift earth disconnection
Inputs: 1 balanced aux line, XLR, 20,000 Ω 1 V RMS
1 unbalanced aux line, RCA, 10,000 Ω 1 V RMS
Voltage Gain: 32 dB
Response: 10-50,000 Hz
Distortion: Harmonic: < 0.05 %
Damping Factor: > 150
Signal To Noise Ratio: > 85 dB
Crosstalk: > 70 dB
Slew Rate: 30 V/µs

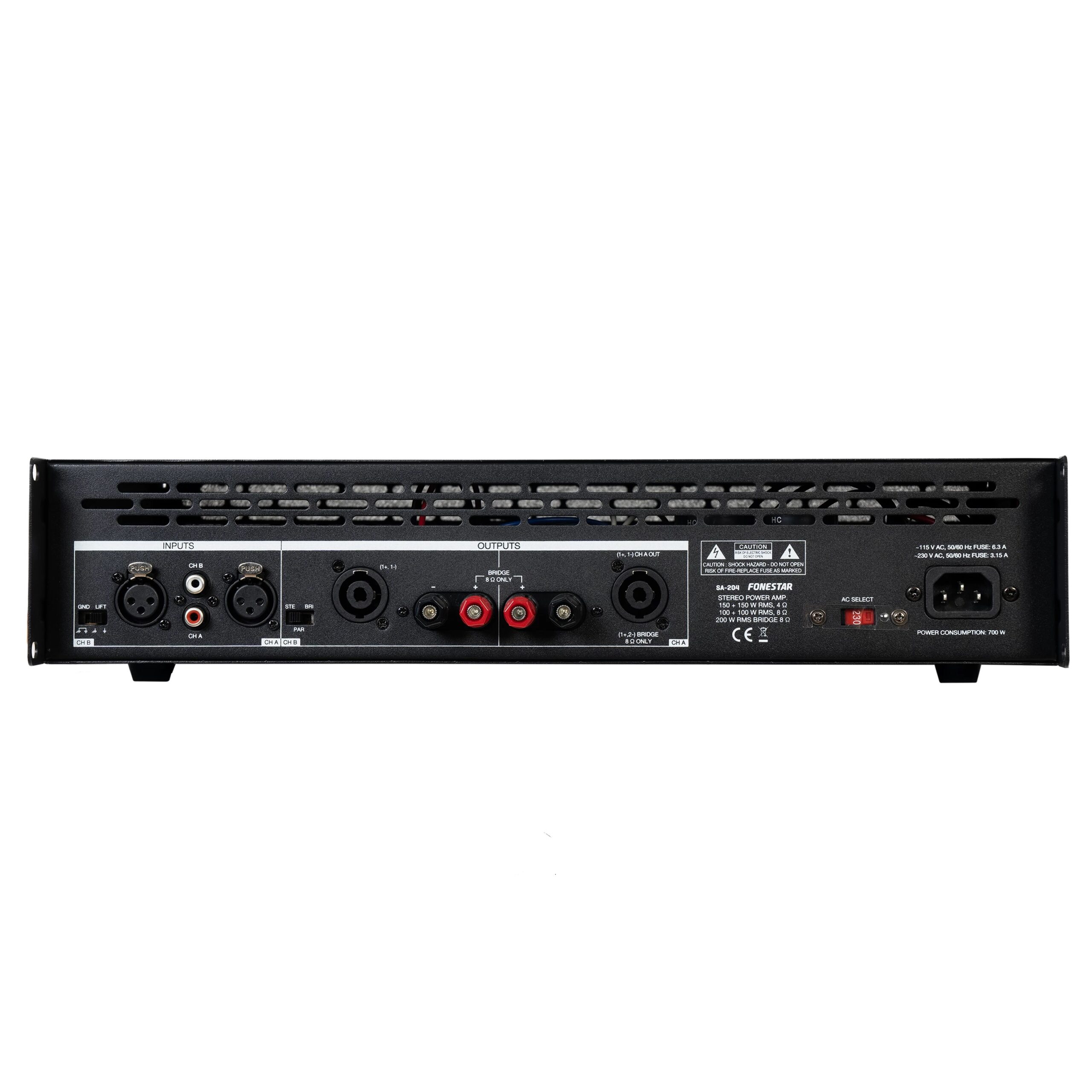

Outputs: Loudspeakers: 4-8 Ω stereo, screw terminals and banana plugs or loudspeaker connector
8 Ω mono bridge, screw terminals and banana plugs or loudspeaker connector
Power Supply: 230/115 V AC, 700 W maximum
Dimensions W x H x D (mm): 483 x 88 x 350 mm depth
2 U 19″ rack
Weight: 7.8 kg

Downloads



Product Datasheet

Product Manual
