PowerZone Connect 122D

Blaze

Amplifier 2 x 60W (4-8Ω / 100V)



PowerZone™ Connect 1U series

The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to simplify the lives of system installers, providing unmatched reliability, efficiency, and exceptional system configuration. Their compact form factor makes them an ideal choice for audio/voice installation projects with limited space constraints, demanding high-output performance of up to 1000 W. The 1U family powers both conventional low-impedance (4 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features automatic power-sharing technology for proportional distribution in both Lo-Z and Hi-Z modes.

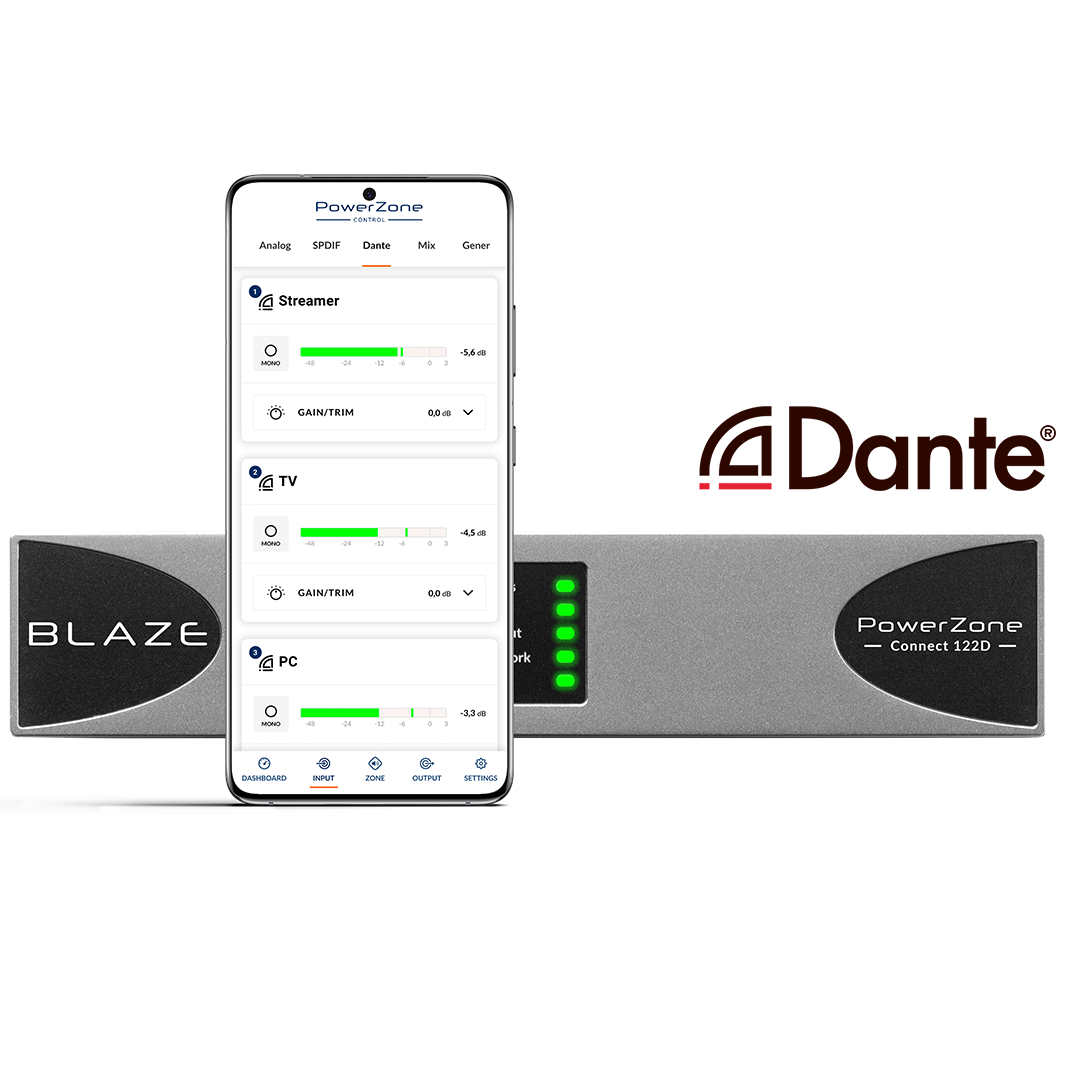

Specific models of the PowerZone™ Connect 1U amplifiers offer compatibility with Audinate Dante™ AoIP networks and installations. Our intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup. PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.

Features

  • Ultra-compact ½-rack form factor
  • Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
  • Audinate Dante® AoIP compatibility
  • Hybrid power distribution in both Lo-Z and Hi-Z
  • Powered by Pascal UMAC™ Class-D technology
  • Flexible power sharing across output channels
  • S/PDIF input/output
  • Configurable GPIO
  • ErP and Energy Star compliant
  • UL listed audio equipment
  • UREC™ universal power supply with PFC 5 Year warranty
Brand

Amplifier Features

, , , , , , , ,

Series

Technical Specifications:

Model: PowerZone™ Connect 122D
Total System Power: 125 W
Output Power @ 4/8Ω: 2 x 60 W
Output Power @ 70/100V*: 1 x 125 W
Powershare (up to) Across all channels**: 1 x 125 W
Power Consumption: 75 W
Dimensions: 44 x 220 x 213 mm / 1.7 x 8.7 x 8.4  in
Weight: 2kg / 4.4 lbs
Output Circuitry: UMAC™ Class D – full bandwidth PWM modulator with ultra-low distortion
Output Voltage: 45Vrms (S.E) – 70/100V (Hi-Z)
Signal To Noise-Ratio: > 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ω load)
THD+N (typical): < 0.05 % (20 Hz – 20 kHz, 8 Ω load, 3 dB below rated power)
Frequency Response: 20 Hz – 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)
Protection Circuits: Short circuit protection, DC protection, under voltage protection, temperature protection, overload protection
Power Supply: UREC™ universal mains switch mode power supply with Power Factor Correction (PFC)
and integral standby converter
Operating Voltage/Frequency: Universal Mains, 100-240V, 50-60Hz
Operating temperature: 0-40°C
Standby Consumption: < 0.5 W (Energy Star & ErP 1275/2008/EC compliant)
Power Ratings: 1% THD @ 120VAC and 230VAC
Channels:
2 Channels, Dante
