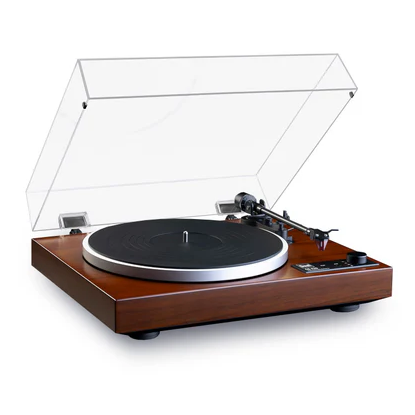

CS 429

Dual

Dual Fully Automatic Turntable

FULLY AUTOMATIC HIFI-TURNTABLE

The fully automatic function of the CS 429 provides maximum ease of use. The tonearm automatically lifts, shifts across and drops with the push of a button. Simply place the vinyl record on the platter and push the start button.

The CS 429 has a fully adjustable tonearm. This provides the option to change the pickup in the future and to alter the trackingforce and anti-scating accordingly.

The internal rubber damping construction decouples the tonearm and platter from external vibrations. This very quiet platform pro-vides an excellent sound performance combined with precise, optical speed control.

DETAILS:

Plinth: Solid MDF

  • MDF construction with internal vibration absorber
  • Elastomer vibration absorber integrated inside the feet
  • Removable dust cover

Platter: Aluminium Die-cast

  • Precise aluminium die-cast
  • Heavy rubber mat for resonance damping
  • Solid platterbearing with a hardened steel spindle in a brass bushing

Tonearm: Straight, statically balanced

  • All functions can be fully automatic or manual
  • Solid aluminum construction with ball-bearings
  • Adjustable trackingforce and antiskating

Drive: DC- Motor / Belt

  • Precise optical speed control
  • Rubber mountings for vibration decoupling
  • Precision cut belt for lower wow & flutter
Colour

Brand

Turntables

Specifications:

Motor:
Drive: Belt
Speed settings: 33/45/78
Wow & Flutter: < ±0,08 % (DIN WTD)

Tonearm:

Auto-Sart/-Stop-Function Automatic
Bearing: Ball-bearing
Effective length: 221,5 mm
Offset Angle: 25,6°
Overhang: 19 mm
Type: statically balanced
Stylus Pressure Range: 0 g bis 4 g
Cartridge Weight Range: 5 g bis 9 g
Factory installed pick up: Ortofon 2M Red

Platter:

Material: Aluminium die-cast
Mat: Rubber 2,5 mm
Bearing: Hardened steel spindle Brass bushing
Diameter: 305 mm
Weight (incl. Mat): 850 g

Plinth:

Material: MDF, folded
Surface finish: Vinyl veneer / Black
Feet: Ø 62 mm / Elastomer
Connection: RCA socket
Connection to Phono Input:
Connection to Line Input:
Digital Output:
Dimension, closed dustcover: 435 x 367 x 145 mm
Dimension, open dustcover: D: 415 mm / H: 400 mm
Weight: 6,2 kg
Power plug AC / DC: External power supply
