More bass! More fun!
The TSW-80 is a 8” single driver subwoofer with built-in high-current amplifier, which is identical in the higher TSW-90 v.4 model, and utilizing slotted bass port on the rear.
The built-in Class A/B amplifier with heavy-duty power boards and high grade components (capacitors etc.) deliveres high power output, is very efficient what results in lower distorsions, smooth and flat response and fast amp operation with significantly reduced noises. An integrated clipping limiter maintains the best performance and safe operation of the amp and woofer even at extremely high volume levels.
The woofer design is based on the TSW-90 v.4. It can opperate in high amplitude ranges and react quickly on all changes in the audio signal structure.
IEC C14 power inlet and a removable Schuko-IEC C13 power cord provides better power supply filtering and stability and gives an option to upgrade your system with a premium audiophile power cable in any time.
The TSW-80 subwoofer delivers the most powerful, deep bass with staggering definition, location and dynamics never met at this price level before. It is the absolute best buy in subwoofers!
Subwoofer cabinet design and built-quality is one of the most critical elements influencing sound performance.
We have developed TLIE (Taga Low Interference Enclosures) cabinets to increase stiffness and limit any unwanted resonances of the enclosure. The TLIE cabinets are built with high density and quality MDF boards and stand on solid feet which provide good isolation from the floor.
The beveled top side edges not only look modern and eye-catching but also play a significant role in lowering unwanted vibrations, diffraction, turbulences and standing waves effect, which can negatively affect subwoofer’s sound performance.
Acoustic damping material used inside enclosures eliminates problem of internal standing waves.
Carefully selected high quality vinyl finishes are very durable, elegant, imitate natural wood texture and are very pleasant in touch. The vinyl finishes are neatly applied to cabinets using precise machinery to provide the best looks and durability.
Premium High Gloss White paint color is also available.
1. T-YOKE / Pole piece
2. Oversized ferrite magnet
3. Top plate
5. Rigid metal chassis with anti-oxidation surface process
6. ASV bobbin copper wire voice coil
8. Paper cone and rubber surround
9. Paper dust cap

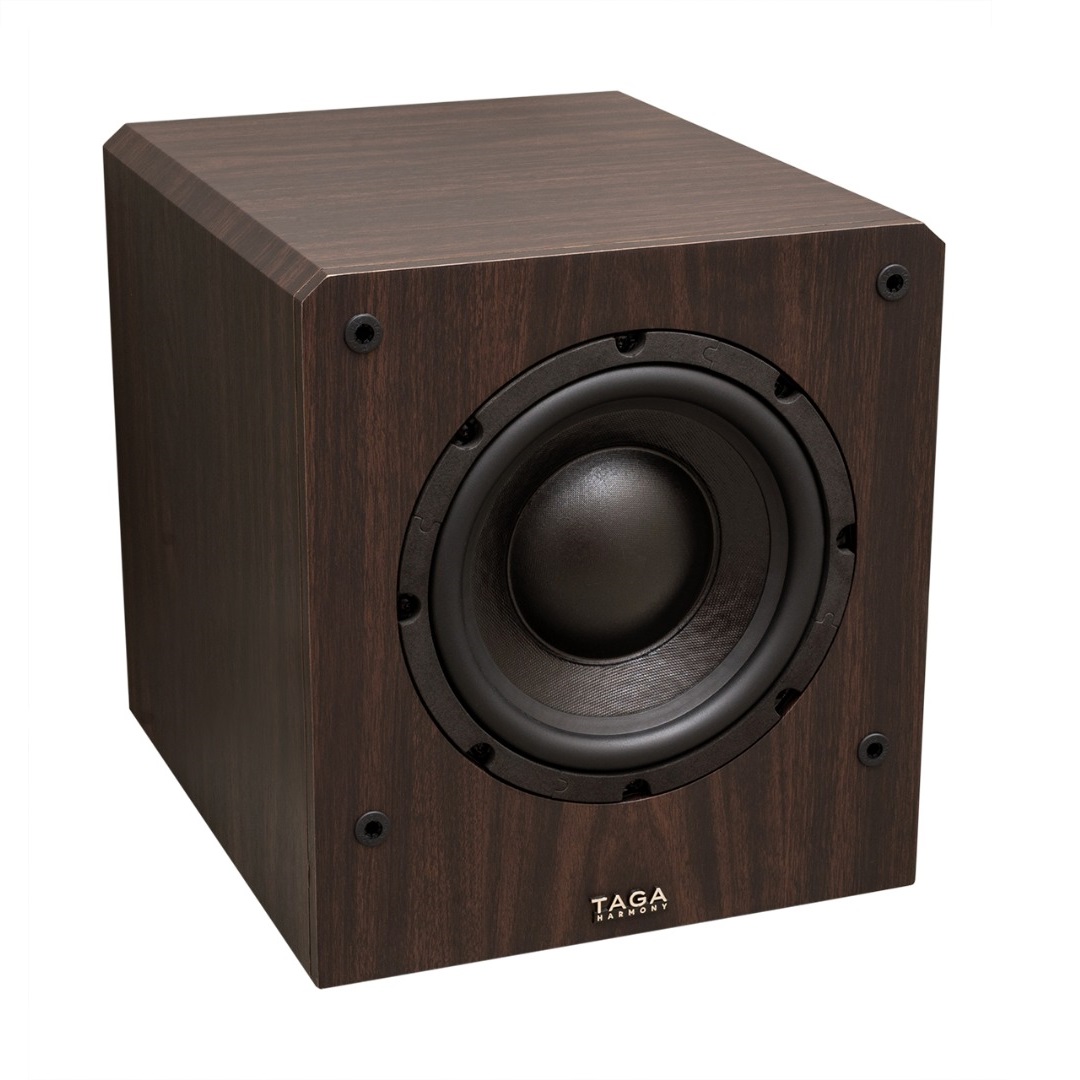

The 203 mm (8”) paper cone woofer is equipped with ferrum injection-molded chassis, oversized Φ120 magnet and a heavy-duty voice coil.
The cone and dust cap are very light and rigid allowing for fast and easily motion. Elastic rubber surround offers extended cone excursion, which results in increased speed and range.
The driver design supports high power handling and provides deep, strong, precise and detailed bass.

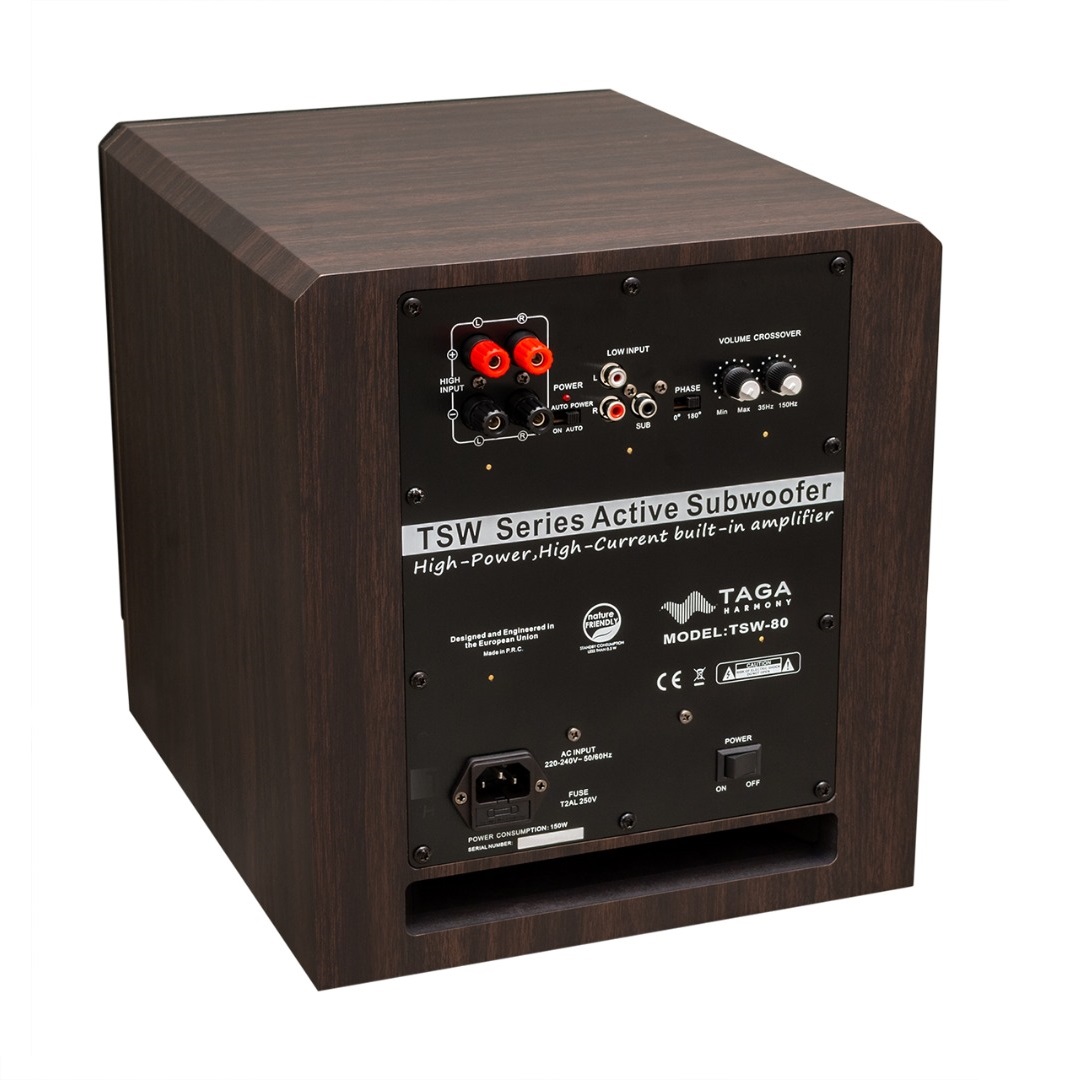

Low-turbulence and high-velocity rear slotted port provides exceptional dispersion of low frequencies and is located very close to the floor.
High Current Amplifier utilizes very well designed boards layout and high quality components to provide reliability and the highest possible bass quality.
An integrated clipping limiter maintains the best performance and safe operation of the amp and woofer even at extremely high volume levels.
High quality toroidal power transformer provides stable energy which is available at all power levels.
