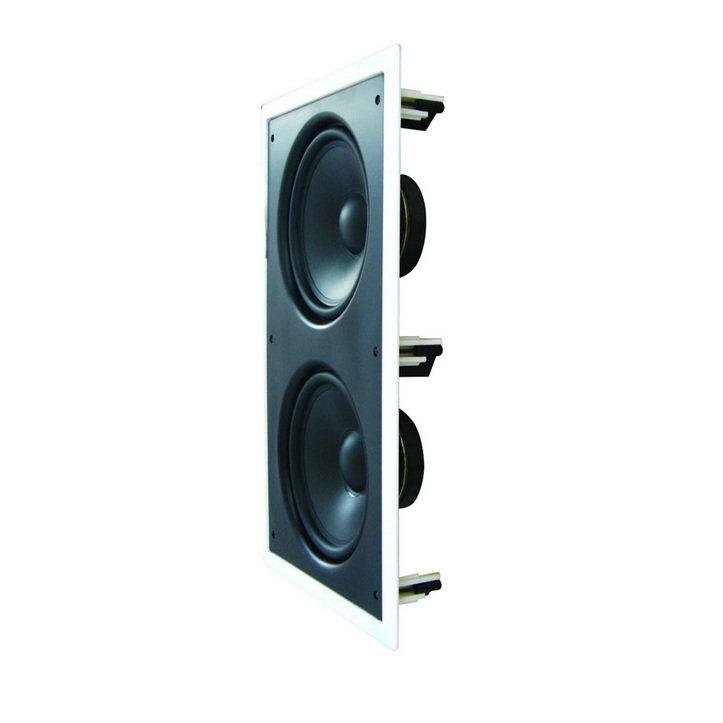

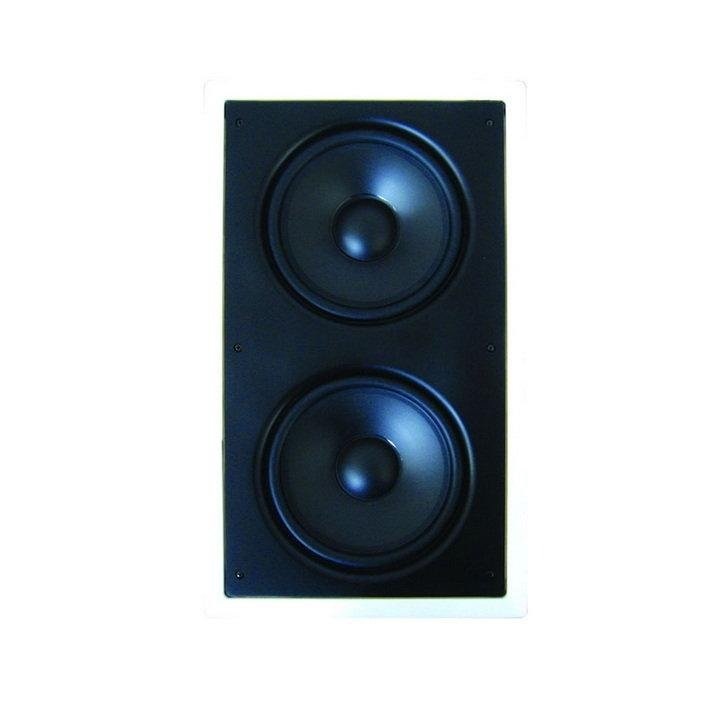

TCP-300

SKU: TCP-300

Taga Harmony

In Wall Subwoofer 2 x 8″ 180W



Brand: Taga Harmony

TCP-300

Wherever a strong and precise bass is required, whether for background music, or in stereo and home theatre systems, and the subwoofer should not be visible, the TCP series subwoofers are the best choice. When properly installed in the wall or in ceiling, they deliver low extended bass with perfect definition and superior dynamics.

It is designed to be used both in music and home theatre systems in any area of your home or commercial applications.

A very stiff and strong injection-molded polymer cabinet, which minimize distortion, vibrations or resonances utilizes specialized mounting brackets that make installation very easy and firm which is crucial for installing the subwoofer in walls or in ceiling.

GRILL

Depending on model:
TBF – TAGA Bezel-Free grills are magnetically mounted.
Standard (wide) bezel grill.

All types of grills are paintable.

The TBF grills are are magnetically mounted and thanks to their design make a speaker virtually disappear in the ceiling or wall.

CHASSIS & BRACKETS

TIMPC – TAGA Injection-Molded Polymer Chassis is very rigid and strong to minimize distortions, vibrations or resonances.

Selected models:
TEI – TAGA Easy Install mounting brackets are extremely easy and safe to install.
ABS clamps in a visible blue color for easy installation in dark places.

Cabinet frames of speakers equipped in regular (wide) bezel grills are paintable.

BASS DRIVER

Depending on the application we use Kevlar® or polypropylene cones and heavy duty voice coils and coil formers are responsible for high power handling as well as deep, precise and detailed bass.

CROSSOVER

Selected models are equipped in a crossover system.
We use high quality, close-tolerance and precisely selected crossover components and internal wires for absolute sound neutrality, high long-term power and reliability.

BINDING POSTS

TEC – TAGA Easy Connection: selected speakers use high quality push-in banana binding posts accepting raw speaker cables up to 10AWG and most popular types of connectors (banana or pin plugs). Our binding posts make any installation a very easy task to do.

Brand

Series

Custom Installation Speakers

, , , , ,

Technical Specifications:

Type: In Wall Subwoofer
Drivers: 2 x 203 mm (8”) Bass Driver Polypropylene carbon reinforced
Frequency response (±6dB):  45 – 500Hz
Nominal impedance:
8 ohms
Sensitivity:
86 dB
Power Handling:  240W MAX
180W RMS
Dimensions(HxWxD): 29 x 48 x 10.3 cm
Cut-out Dimensions(HxW): 26 x 45 cm
Mounting Depth:  10.3 cm
Net weight: 4kg
