EX-LYNX-RX

SKU: LYNX-RX

Hall Technologies

HDMI Over CAT6 Receiver (60m)

Box Receiver – LYNX Series

The LYNX Series features extension of Ultra HD resolution, 4K2K@60Hz video signals with audio and control up to 60m (197ft) over a single category cable. Both the LYNX-TX and the LYNX-RX include local audio de-embedding via a 3.5mm stereo output. The LYNX-TX transmitter includes an HDMI Local Loop output to allow for monitoring and playback status of the local video source. Additionally, the LYNX-RX receiver includes an RJ45 Loop Output to allow up to eight receivers to be cascaded to create a larger distribution solution and/or to enable greater distribution distance. LYNX also supports bi-directional control pass-through for source and display control, and ships with a pair of infrared emitters.

Features:

  • OUTPUT: HDMI 2.0, HDCP 2.2 / HDCP 1.4
  • 4k2k@60Hz 4:4:4 signal extends distance up to 60 meters over a single Cat6 cable
  • Supports Ultra HD resolution 4K/2K@60Hz,4:4:4
  • Supports HDR (High Dynamic Range)
  • Bi-directional IR supported
  • Supports Local Loop Output and cascading VIA RJ45 CAT Port
  • Note: Rs232 & IR only can be used between Transmitter and the first Receiver, if multiple Receivers are cascaded.
  • Support for mixing EDID for better compatibility
  • Offers simple and quick distribution for HDMI video signals – position your monitors wherever you wish
  • Resolutions: 4K2K (60Hz), 4K2K (30Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i

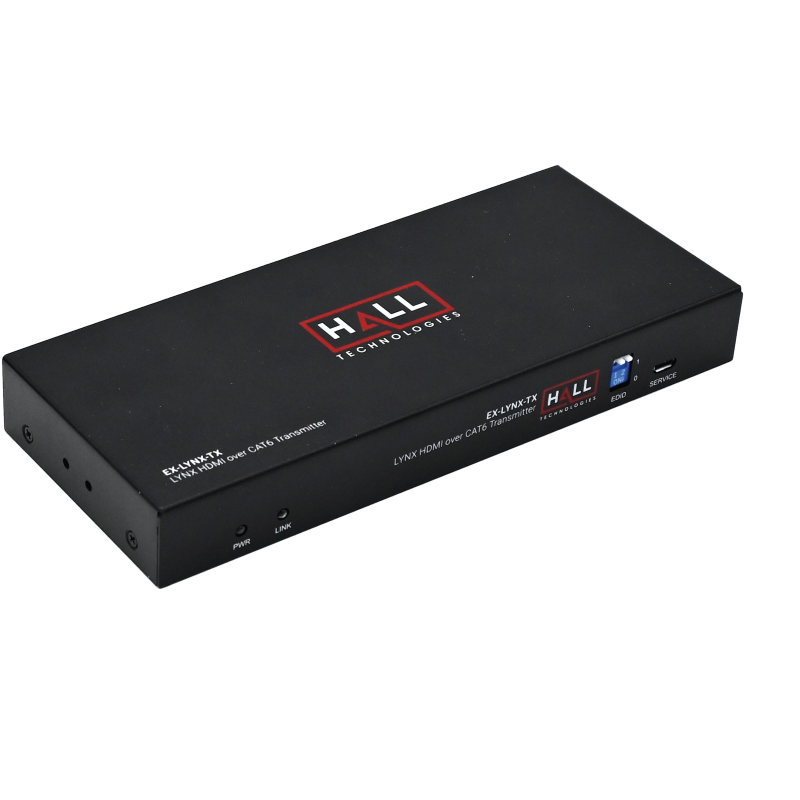

  • LED status display
  • Max transfer rate: 18 Gbps
  • Color depth: 12 bit
  • Supports compressed audio signals, such as DTS digital, Dolby digital (including DTS-HD and Dolby True HD)
  • Supports uncompressed audio signals such as LPCM
  • Compact size, simple use and installation
  • Supports PoC, function. This means either transmitter or receiver is powered by a 12v power adapter, the other device doesn’t need a power supply.

SKU: LYNX-RX Category: Tags: , ,
Brand

General
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Humidity 20% to 90%, non-condensing
Power Consumption 2.5W
Technical
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2 / 1.4
Video Bandwidth 18 Gbps
Video Resolution 4K2K@60Hz, 4K2K@30Hz, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Color Space RGB / YPbPr 4:4:4, YPbPr 4:2:2/4:2:0, YUV 4:4:4
Color Depth 8/10/12-bit (1080p@60Hz, 4K@30Hz, 4K@60Hz YPbPr 4:2:2/4:2:0)
8-bit (4K@60Hz 4:4:4)
HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus
(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Resolution / Distance 4K60:
• Cat5e: 50m
• Cat6/6a/7: 60m
• HDMI: 3m
4K30 / 1080p:
• Cat5e: 50m
• Cat6/6a/7: 70m
• HDMI: 4.5m
NOTE: Premium High Speed HDMI cable is highly recommended.
Video Input 1x HDMI Type-A (19-pin Female)
1x RJ45

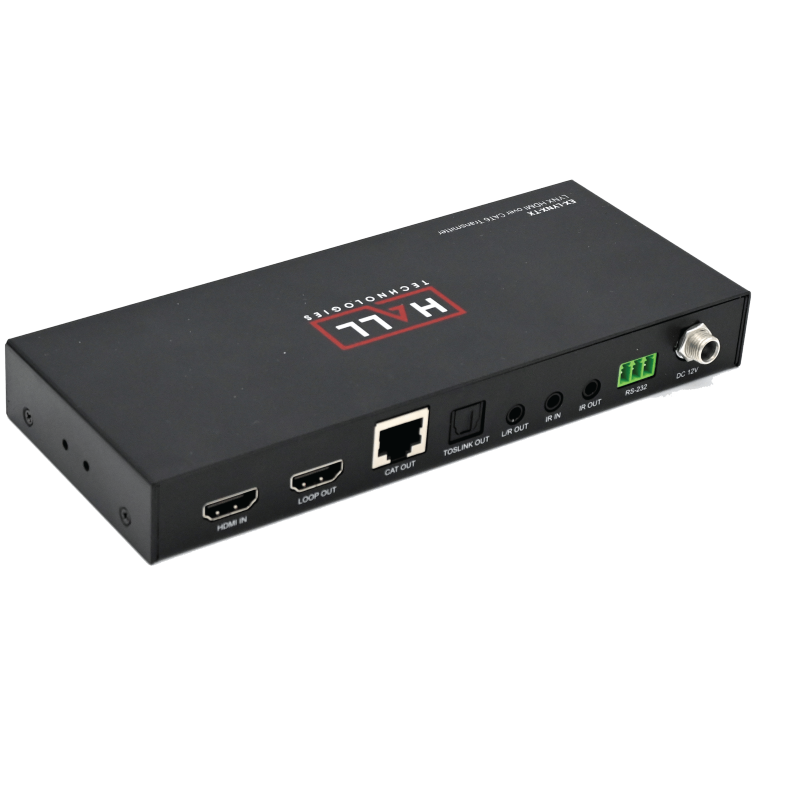

Video Outputs 1x HDMI Type-A (19-pin Female) [Loop through] 1x RJ45
Audio Outputs 1x Fiber Optic
TOSLINK 1x 3.5mm Stereo
Control Inputs/Outputs 1x 3.5mm [IR OUT] 1x 3.5mm [IR IN] 1x Phoenix [RS-232 pass-through]
Service 1x Micro USB
Power 1x DC 12V/1A (included)
Dimensions WxDxH 180 x 75 x 25mm
Weight 295g
