ISR-2

SKU: RTI ISR-2

RTI

Wi-Fi Remote Control



Brand: RTI

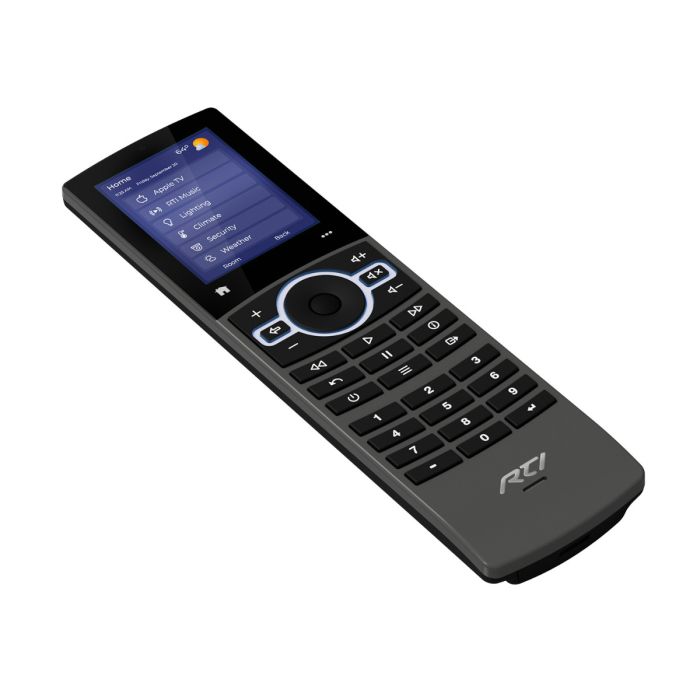

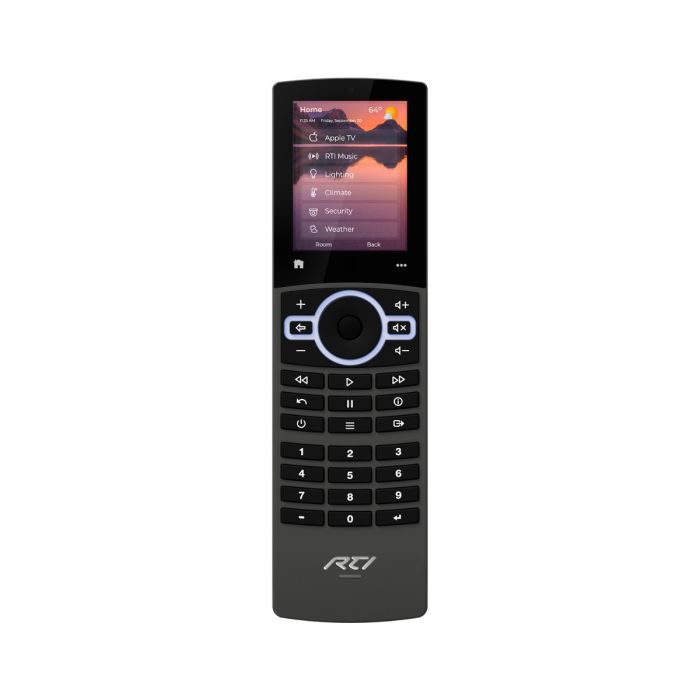

ISR-2 – 2.8’’ Intelligent Surface Remote Control with Wi-Fi and IR

Elevate your entertainment experience with the modern and refined Intelligent Surface Remote from RTI.

Featuring edge-to-edge glass with capacitive touchscreen set within a premium aluminum frame, the ISR-2 blends art and engineering to deliver the ultimate media control experience.

The vibrant 2.8” touchscreen display pairs with a numeric keypad and soft-touch buttons, a thoughtful balance ensuring seamless control for any media system. The intuitive 5-way thumbpad, full transport controls, and carefully selected soft-touch buttons offer real-time haptic feedback, making every command precise and responsive.

The ISR-2 features advanced Wi-Fi technology for instant and reliable network connectivity. Plus, its built-in accelerometer activates the remote as soon as it’s picked up, ensuring it’s always ready for action without any delay. The ambient light sensor automatically adjusts the display brightness to match the room’s lighting conditions for optimal visibility.

The ISR-2 intelligently hibernates when not in use, delivering up to 6-7 days of battery life between charges with typical use. Plus, the included charging base ensures the remote is always ready when you need it.

The ISR-2 programs with RTI Integration Designer® software to deliver a 100% customizable experience exclusive to RTI control and automation systems.

Programs only with RTI Intgration Designer 11.

Included in the box:
ISR-2, charging base, power supply (5V, 2A)

Key Features

  • Flush-mount, 2.8” capacitive LCD touchscreen (240×320).
  • Thin, sleek design with superb ergonomics.
  • Wi-Fi control.
  • Integrated 802.11b/g/n wireless Ethernet enables viewing MJPEG video, wireless program updates, enhanced two-way control and more.
  • Accelerometer provides “instant-on” control.
  • Thirty-two assignable/programmable soft-touch buttons for commonly used functions.
  • Two individually illuminated programmable capacitive touch buttons on the touchscreen.
  • Cursor button allows simple scrolling list navigation.
  • Includes a Lithium-Polymer battery and charging base.
  • Extremely wide IR transmitting frequency range.
  • Completely customizable and programmable.
  • Non-volatile Flash memory stores your system configuration even when power is not present.

2.8” Touchscreen

2.8” flush-mount, high-resolution capacitive LCD touchscreen with a 240×320 resolution.
The customizable graphical user interface allows for intuitive touch screen control.

Capacitive Touch Buttons

2 individually illuminated programmable capacitive touch buttons on the touchscreen give fast response to commonly used functions incl. Home, Options, and Voice.

Soft-Touch Buttons

32 programmable soft-touch, back-lit buttons provide quick access to often used control functions such as lights, music, or audio/video source selection.

2-Way Control

Get status feedback from controlled devices on your remote such as on/off or arm/disarm status, dimming value of lights, music playlists, available radio stations.

2.4 GHz Wi-Fi

Full control, check the weather forecast, view video from network security cameras or perform remote programming updates through a standard WiFi connection.

Direct Infrared Control

Control devices directly without a control processor.

Accelerometer

Pick up your remote and the accelerometer automatically wakes the touchscreen.

Ambient Light Sensor

Enables the perfect display brightness to be set automatically depending on the ambient light.

Lithium Polymer Battery

The powerful battery features higher energy densitiy and leighter weight than other batteries.

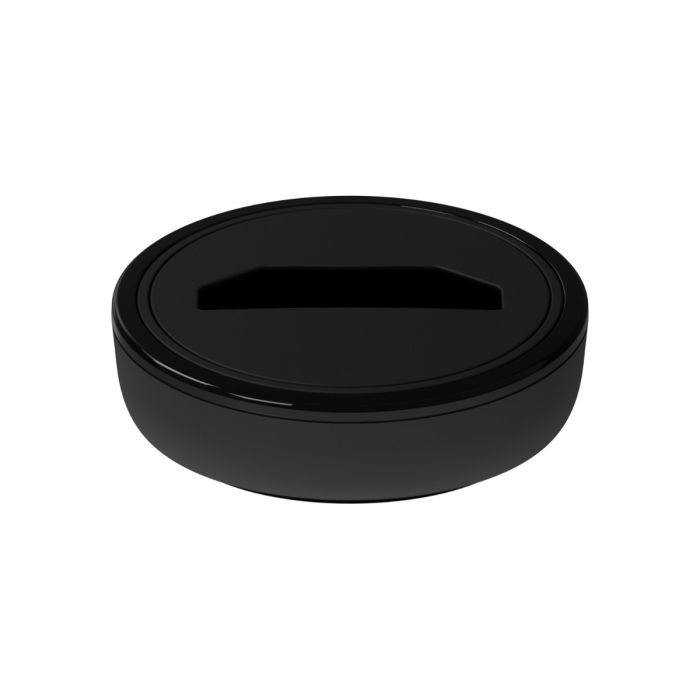

Charging Base

Charge the ISR-2’s battery conveniently with the included charging base.

Brand

Home Automation Controller

, , ,

Technical Specifications:

Power 3.85 VDC, 1800 mAh Lithium-Ion Battery Pack
Power Management Integrated accelerometer
Infrared Control Range 30 feet (9.1 meters) @ 60 degrees
Infrared Frequency Transmission Range 15kHz – 460kHz
Radio Frequency Control Range Up to 100 feet (30.5 meters)
Wireless Ethernet 802.11b/g/n @ 2.4Ghz
Touchscreen Display High-brightness color IPS-TFT LCD
240×320 pixels with 264k colors
Integrated high-resolution capacitive touchscreen
Display Size 2.8” (71mm) diagonal
Backlights White LED (keypad & soft buttons)
Standby Time on Full Charge 7 Days
Battery Charge Time 3-4 Hours
Operating Temperature .+32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Dimensions (L x W x D) 8.3” (212mm) x 2.4” (61mm) x 0.8” (20mm)
Enclosure Aluminum and molded ABS plastic
Weight ISR-2: 7.48 oz. (212g) with battery pack
ISR-SB: 9.88 oz. (280g)
