SUB 5 KM

SKU: SUB 5 K2 M

Focal

Subwoofer 5.7″ 200W

UNIQUE BASS

5.7” (145MM) SUBWOOFER

Like all the speaker drivers in the K2 Power M range, the 5 3/4” (145mm) subwoofer 5 KM is fitted with Focal’s iconic aramid fibre K2 sandwich cone. And for an even bigger performance, Focal’s engineers have combined it with their famous ‘M’-profile. This shape of cone offers better frequency response and better sound dispersion, and reduces speaker driver depth. Attributes that go hand-in-hand with the power and dynamics delivered by the K2 cone. Your system delivers faultless music and pure, high-fidelity sound to provide the ultimate in driving and listening pleasure.

With these active K2 Power M products, you can build your own “à la carte” audio system, to create the system you really want. These powerful products are also ultra compact for easy installation into all cabins.

KEY POINTS:

  • Exclusive, patented Focal technologies
  • Compactness and exceptional power handling
  • Active product
  • Aluminum grille (optional)

UNRIVALLED SOUND DISPERSION

The ‘M’-profile combined with the K2 sandwich cone offers even better frequency response, improved sound dispersion, and reduces speaker driver depth while maintaining the signature K2 sound.

ZERO DISTORTION

Developed for the Sopra line of hi-fi loudspeakers, our TMD (Tuned Mass Damper) surround ® has a unique profile, designed to better control the effects of resonance and to drastically reduce the distortion associated with deformations of the cone. The speaker driver takes advantage of this patented tuned mass damper (TMD) by spreading better defined and very realistic midranges.

BESPOKE SYSTEM

Just like the Utopia M line, the K2 Power M range offers an “à la carte” audio system. Installers are free to choose from the speaker drivers on offer to create their own, bespoke system.

SKU: SUB 5 K2 M Category: Tags: , , , ,
Brand

Subwoofers (Car)

,

Series

Technical Specifications:

Type of loudspeaker Subwoofer Speaker Driver
Drivers Subwoofer 5.7″ (145mm)
Magnet Ferrite
Voice-coil diameter 2.36″ (60mm)
Frequency response  35Hz – 250Hz
Sensitivity (2.83V/1m) 86dB
Nominal impedance
Suspension Catenary profile
Cone type K2 Sandwich, M-profile
Power (RMS) 200W
Power (Peak) 400W
Mounting Depth 69mm
Sealed enclosure (Volume/F-3dB) 4L / 41Hz
6L / 39Hz

Downloads

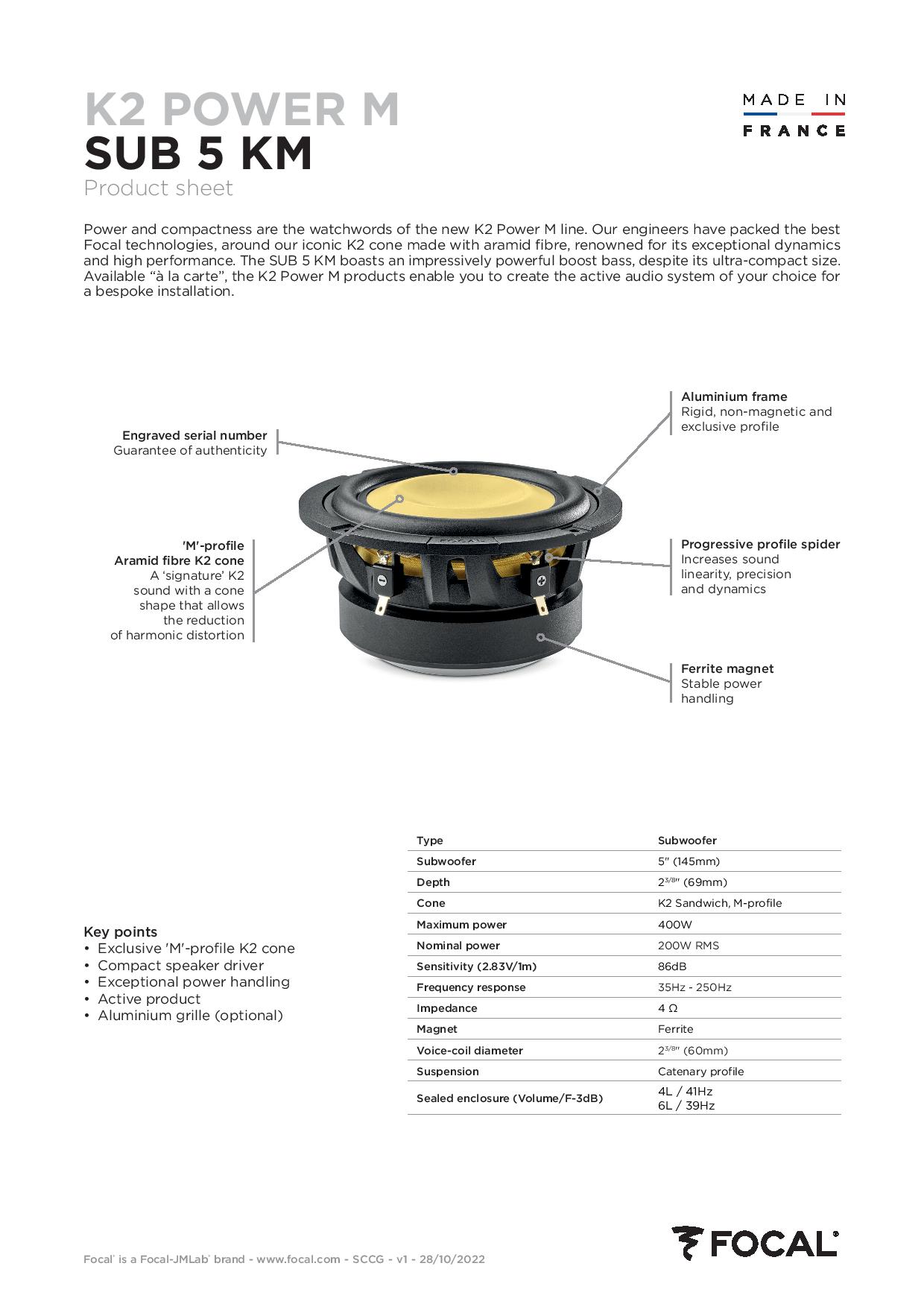

Product Datasheet

Product Technical Sheet

Product Manual
