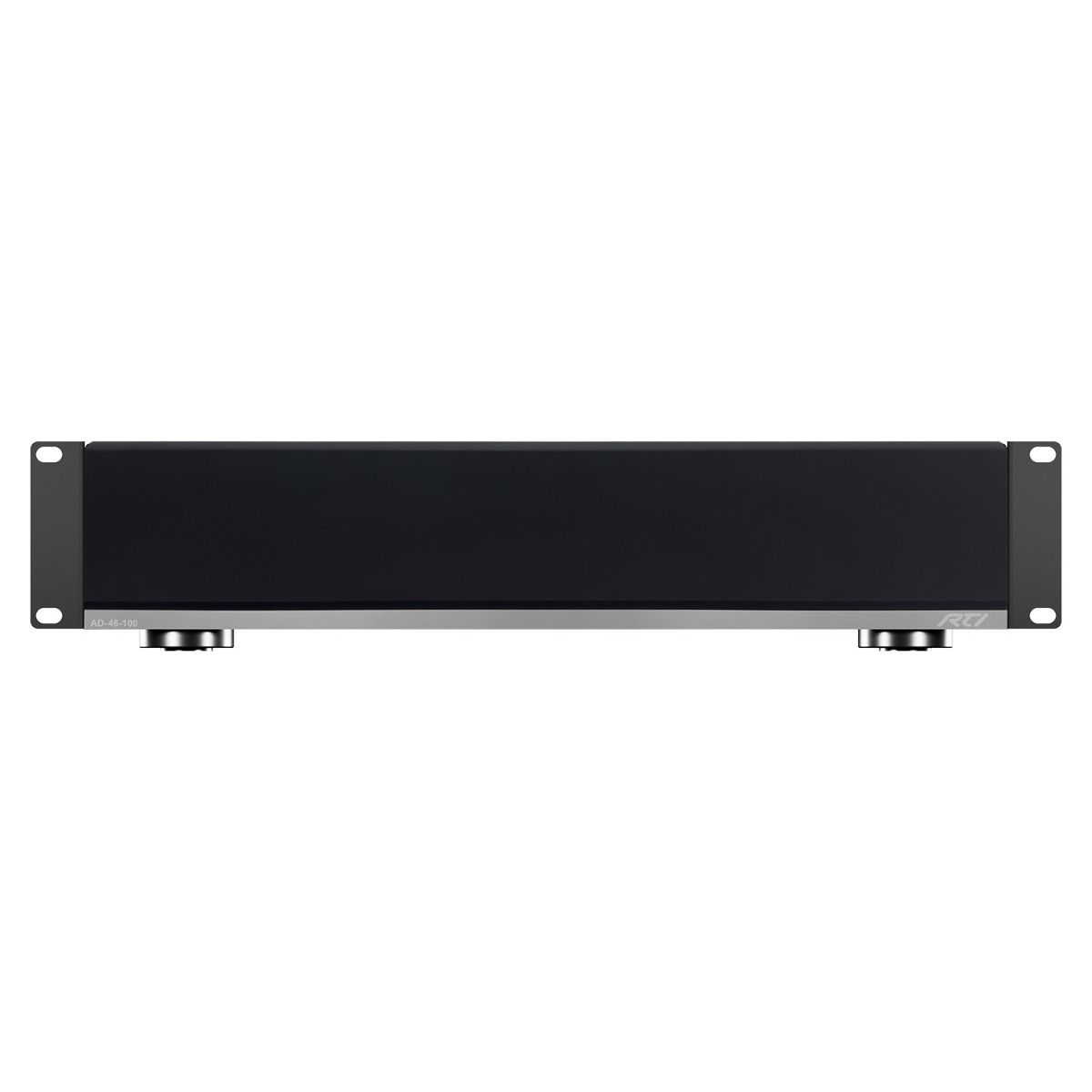

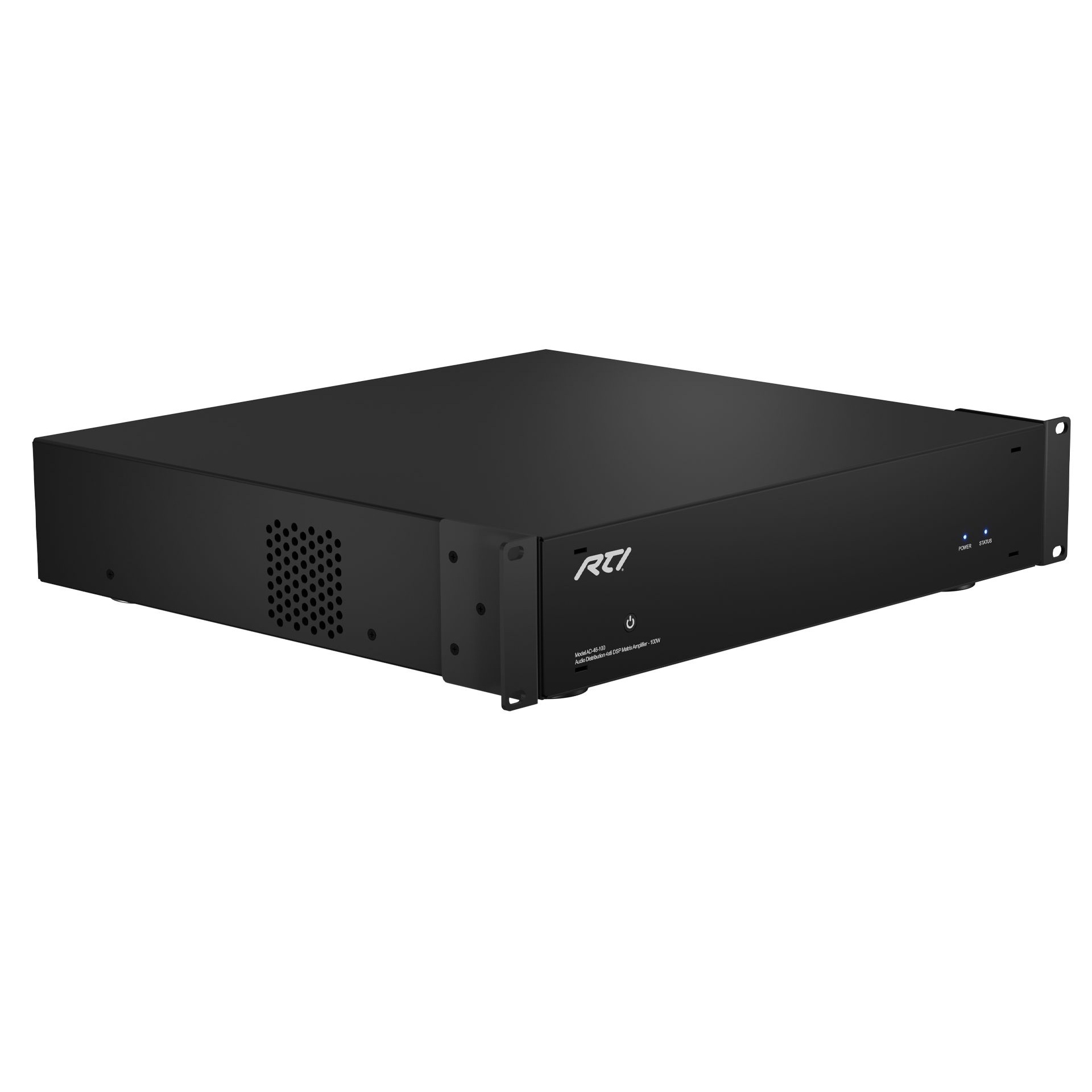

AD-46-100 – 4×6 DSP Matrix Amplifier
The AD-46-100 is a 4×6 DSP Matrix Amplifier for distribution of four audio sources to six zones, with four zones amplified at 100 Watts. Two zones feature preamp outputs to integrate external power amplifiers or subwoofers. The AD-46-100 enables seamless routing of both digital and analog sources to any desired zone and features a comprehensive set of DSP controls. This includes a 5-band parametric EQ, allowing integrators to fine-tune acoustic characteristics and tailor sound to specific spaces, plus mixing and auto-ducking features facilitate seamless integration of microphones and doorbells, effortlessly prioritizing audio sources and ensuring smooth transitions. Configuration and DSP functions can be customized directly within Integration Designer or with the intuitive web GUI, enabling the AD-46-100 to work in standalone mode or within another control system environment.
Amplification is with an efficient Class D Cool Power® design that optimizes performance while minimizing heat generation. Up to 100W per channel power output (all channels driven) provides for a robust and clear audio experience even in demanding environments. For projects that need more power, integrators can bridge outputs to enable a 200W per channel output.
For projects that need more zones, up to eight AD-46-100 chassis can be combined to deliver 32 amplified and 16 preamp zones.
Key Features

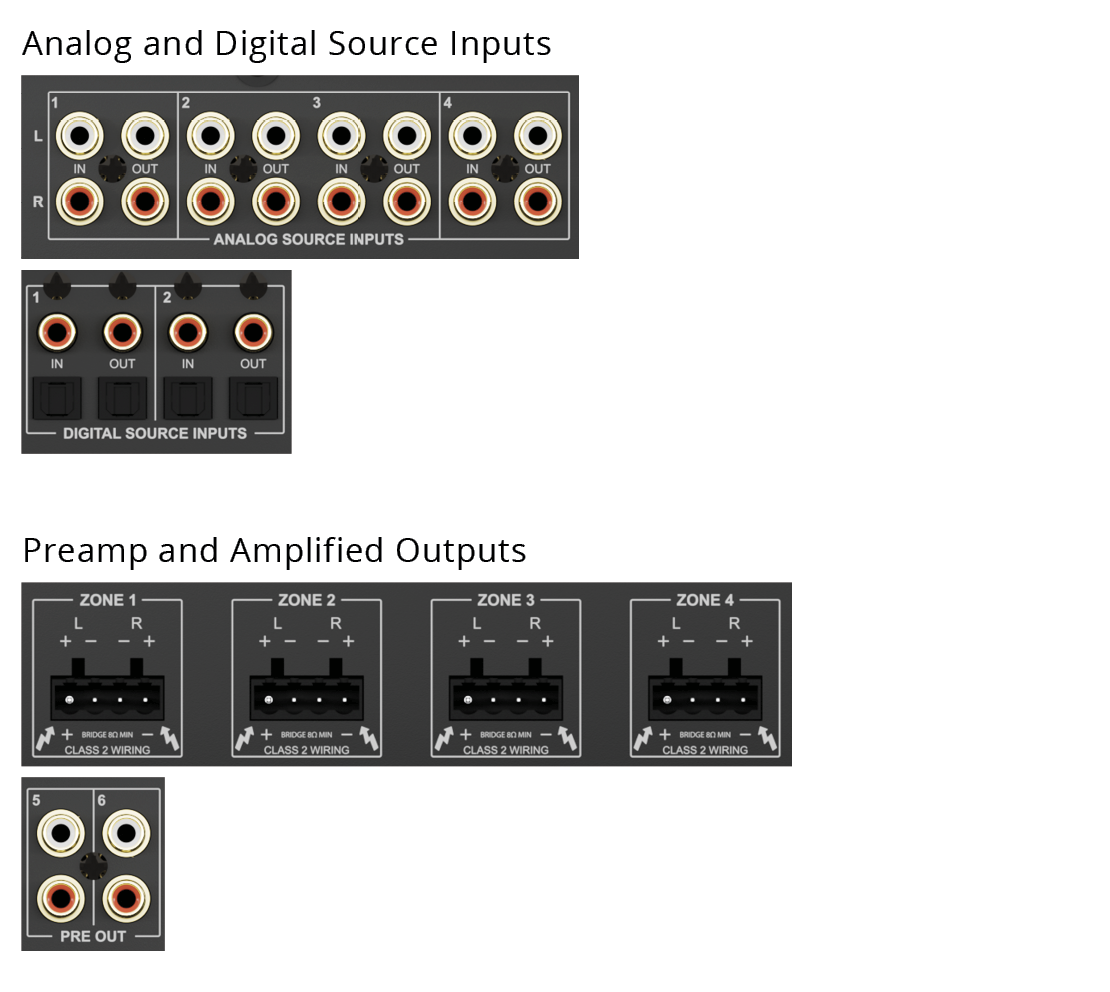

- Four analog audio source inputs and two mirrored digital inputs (mirrored analog inputs).

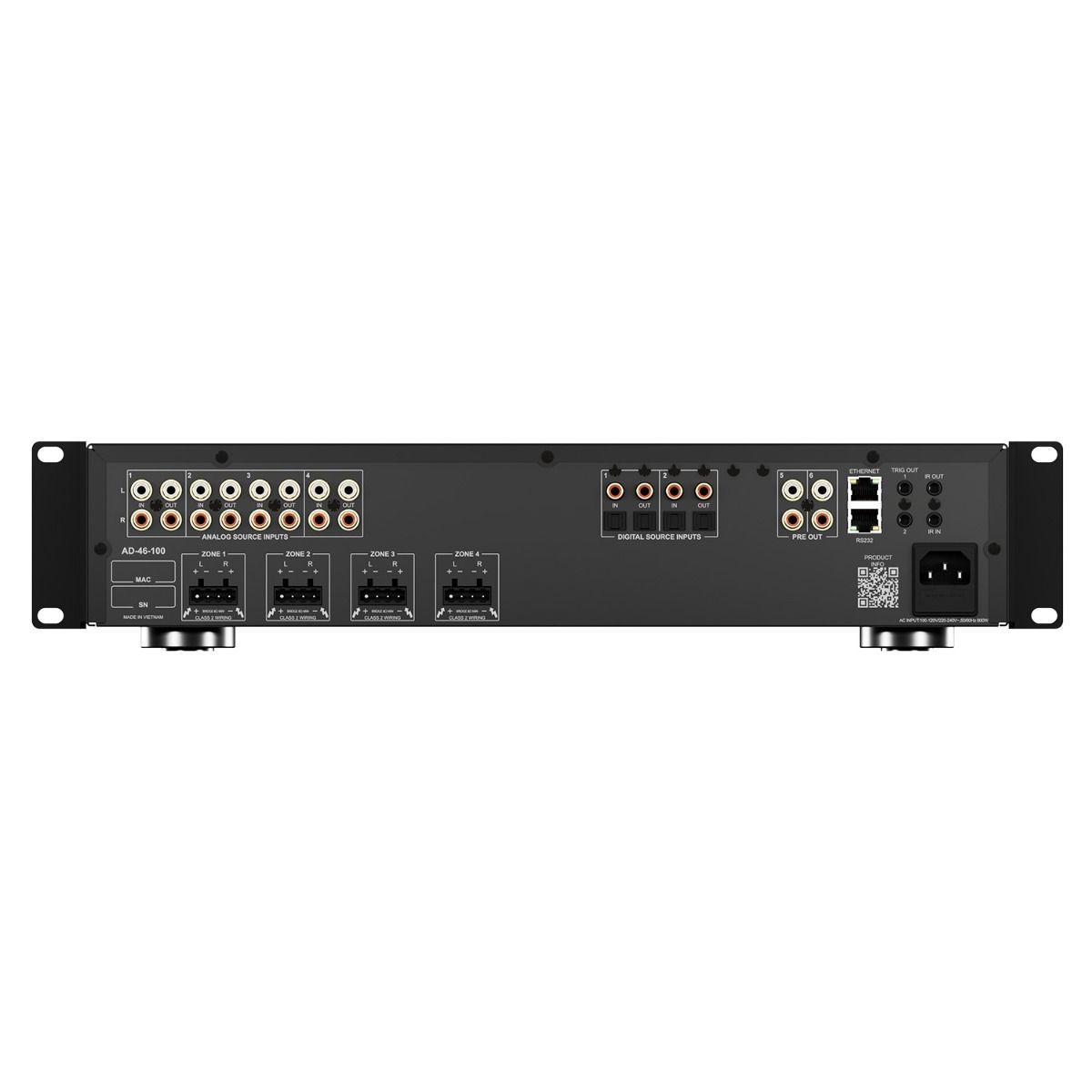

- Six stereo audio output zones with four amplified stereo and two preamp stereo outputs.
- Class D amplifier provides a robust and clear audio experience with 100 Watts @ 4Ω per channel per zone.
- Distribute four audio source inputs to six zones, expandable to 48 zones.
- Fine-tune acoustic characteristics for each zone with the 5-band parametric EQ, mixing and auto-ducking features.
- Configure and optimize DSP and matrix settings.
- Multiple control options with RS-232, IP and IR.
- Rack mount or free-standing installation..
4 Sources
Four analog audio source inputs and 2 digital inputs (mirrored analog inputs).
6 Zones
Six stereo audio output zones with 4 amplified stereo and 2 preamp stereo outputs to integrate external power amplifiers or subwoofers.
Ultra-Efficient
Cool Power® Class D amplifier technology ensures efficient heat dissipation and low power consumption.
Clearly Powerful
Experience the apex of audio power with 100 Watts @ 4Ω or 50 Watts @ 8Ω, delivering unparalleled sound quality and clarity. For more power, bridge outputs for 200 Watts per channel.
4×6 Audio Matrix
Distribute four audio source inputs to six zones, expandable to 48 zones by stacking up to eight AD-46-100 units.
Audio Source Versatility
Use either analog or digital audio sources or a combination of both.
Built-In DSP
Configure and optimize DSP and matrix settings directly within Integration Designer or with the intuitive web user interface.
5-Band Parametric Equalizer
Fine-tune acoustic characteristics, correcting imperfections and tailoring sound to specific spaces.
Control
Use RTI or 3rd party control system with multiple control options: Two-way control with feedback via RS-232 and IP, or One-way control with infrared.
Auto Configuration
Configure and deploy the AD-46-100 with ease within RTI’s Integration Designer platform.
Mounting Options
Rack mount or free-standing installation with included rack ears and removable feet.
